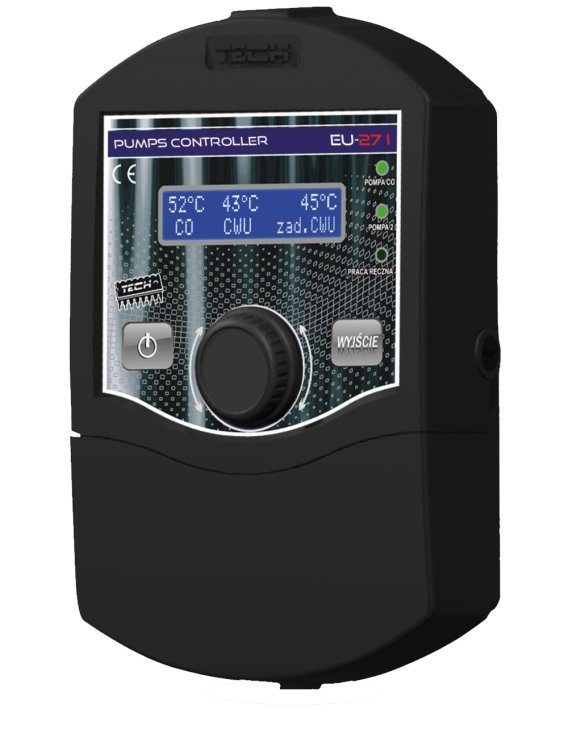

2 x pumps Controller EU27i

2 x pumps Controller EU27i

€149.00
z pict. 1


1
Item is in stock

Description

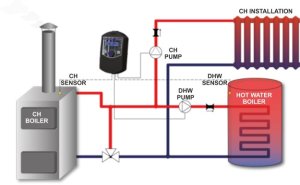

Principle of operation EU-27i regulator is intended for controlling the CH pump and an additional pump ( DHW pump or floor pump) Its task is to switch the CH pump on if the temperature exceeds the threshold value of activation, and to switch the pump off when the boiler cools down (e.g. as a result of burnout). As regards the second pump, apart from setting the activation temperature, the user also adjusts the set temperature up to which the pump will operate.
Functions performed by the controller:
- CH pump control
- Control of additional pumps (DHW pump or floor pump)
- possible operation as a thermostat
- anti-stop function
- anti-freeze function
Equipment of controller:
- LED display
- CH temperature sensor
- Additional pump sensor
  • Power supply V 230V/50Hz +/-10%
  • Maximum power consumption of the controller W 4
  • Ambient temperature °C 5÷50
  • Maximum output load of the pump A 1
  • CH temperature range °C 30÷75
  • CH temperature range °C 20÷75
  • Hysteresis °C 1÷20
  • Accuracy of measurement °C 1
  • Thermal resistance of the sensor °C -25÷90
  • Fuse-link A 1,6
  • Sensor cable length m 1,5

    • Features

    • Model: EU27i
    • Shipping Weight: 2lbs
    • Manufactured by: Tech
