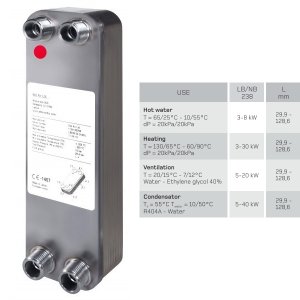

Heat exchanger 238 - 10 - 31Bar

Brazed plate heat exchanger. Application: refrigeration systems, heat pumps, substations and so on. Design pressure -16 bar at +200°Ñ.

Power range 1 - 5 kW
flow rate: 5 cub m/h (maximum)
operating pressure: 31 bar (maximum)
operating Temperature: 200˚C (maximum)
connections: external 3/4 thread
10 - number of plates

Chevron angle: H

No of plates: 10

Volume of channel: 0,038 litres

Max. flowrate: 5 m3/h

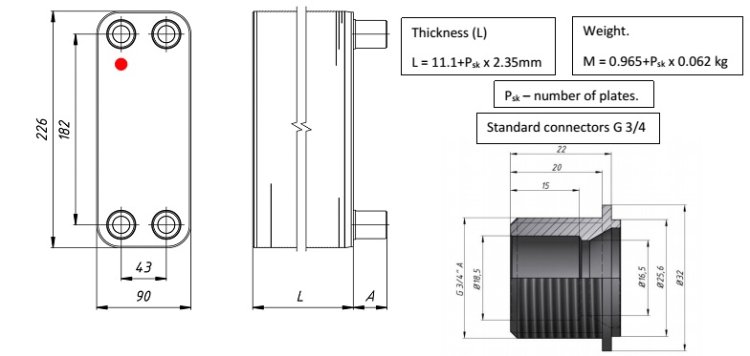

BPHE dimension: 226 mm õ 90 mm

BPHE height dim.: 22,1 mm. +5,7 mm. + 2,35 mm.õ N

Connectors - different combination of diametres from 6 mm to 25 mm. As standard - Universal threaded solder ¾”ISO G.

Height of connector: 22,1 mm

Types of connections: external and internal thread, solder.

Weight: 0,88 kg+0,062 kg.õ N
Materials:

Corrugated plates: stainless steel AISI316L (1.4404)

Reinforcement plates: stainless steel AISI304 (1.4301)

Standard connectors: stainless steel AISI304 (1.4301)
