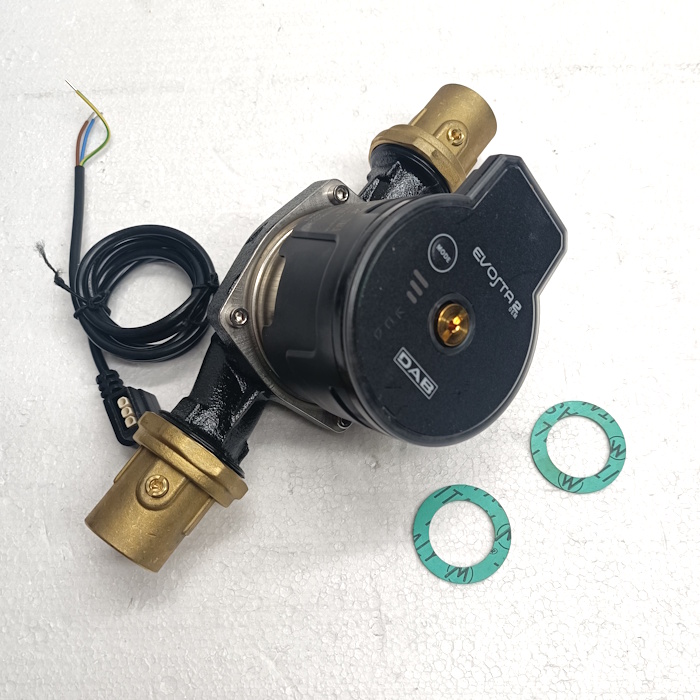

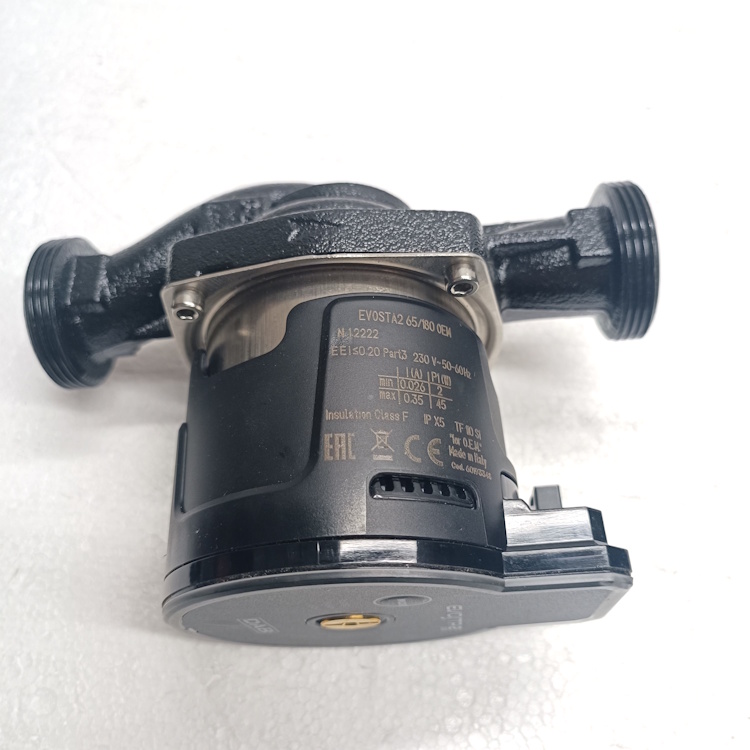

A-class circulator pump DAB Evosta 25/65 180

Pump DAB Evosta 25/65 180

DAB Evosta 25/65 180  series pump is designed to force the circulation of a medium in a central
heating (central heating) system.
FEATURES
 High energy efficiency - reduces energy costs
 Intuitive control panel
 Several types of pressure and speed control
 Resistant to water-glycol solution at a 50/50 ratio
 Economical night mode
 Very quiet operation
 Standard mounting connection size
 Robust and durable construction
 Cable with plug

• Size 1 1/2"
• L 180 mm
• Voltage 1 x 230 V - 0,33 A
• Power 6 - 45 W
  3-speed
• I - 6 W, 0,06 A
• I - 33 W, 0,14 A
• Water temperature range 5⁰C ÷ 110⁰C
  Ambient temperature during operation 0⁰C ÷ 40⁰C
  Maximum system pressure 10 bar
  Rotor PPS technopolymer
  Maximum motor speed 2850 rpm
  Cable length 1.3m
  Sound pressure <53 dB
  Degree of protection: IP 44
  Insulation class F
  Pump casing cast iron
  Engine housing aluminium
  Pump shaft ceramics
