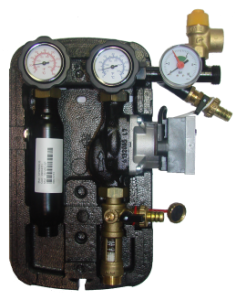

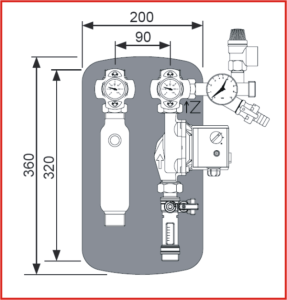

Wilo Yonos Para 15/6 pump station Vert VRD 90

Pump station Solar unit Vert VRD 90 is equipped with variable flow rate 2-12 l/min, circulation pump Wilo, safety group with manometer 0-10 bar and safety valve 6 bar,air separator,ball valve with build-in check valve and thermometer, ball valve with thermometer, a set of connections for pipe 22 mm, wall bracket and insulation. The lateral position of the pump ensuring the full aeration of the hydraulic unit protecting it from high temperature

VERT VRD90 is a forced circulation solar station with variable flow rate 2-12 l/min. The feature that makes it unique is the flexibility of installation of several digital solar controllers, regardless of their size and dimensions. In order to protect the digital solar controllers from the overheating, VERTIGO VRD 90 is equipped with an insulation that totally separates the solar station from the digital controller. The frontal covering case has an air intake that allows the right aeration of the electronic device.

Wilo Yonos Para 15/6
