Description

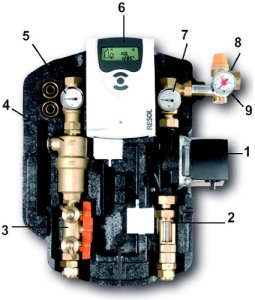

FlowCon C+ * Dimension DN 20 - 3/4“ * Materials Valves and fittings Brass * Gaskets EPDM / NBR * Insulation EPP * Check valve modified PPS
Techn. data
Max. pressure 6 bars * Max. temperature 120 °C, short-term 180° C
Equipment : Airstop, Check valves 2 x 200 mm wc , Flowmeter 1-13 l/min , Pressure relief valve 6 bars, for solar thermal systems, Pressure gauge 0-6 bars, resistant to high temp. Thermometer 0-160 °C, full metal , Controller Type 4 Plus
Dimensions: Connections 3/4“ internal thread * Centre distance
125 mm * Width insulation 300 mm * Height insulation 480 mm
All fluid-carrying parts are made of brass
All connections ¾" internal thread
Premounted on steel wall bracket, can be easily mounted to the wall with halting technique
Full port ball valves
Check valve in the flow and return ball valve, can be opened by turning the ball valve handle to a 45 °C position, 200 mm wc each circuit, especially for solar systems, prevents any gravity circulation
Large ball valve handles, easy handling, visible closing position Airstop in the flow
for permanent deaeration of the solar fluid
Design insulation with optimised function made of durable elastic EPP; 100 % insulated valves and fittings - excellent ventilation and cooling of the pumps
Solar controller
integrated into the insulation, prewired and ready for quick installation, water protected
Solar safety group
Solar pressure relief valve 6 bars, pressure gauge resistant to high temperature 0-6 bars with valve, ball valve for flushing and filling, flat sealing connection for an expansion tank
Full metal solar thermometers, 0-160 °C
can be pulled off, with immersion sleeve integrated in the ball valve
Fully assembled with flat gaskets
With solar circulation pump by Wilo or Grundfos,
already installed and prewired
Pump can be completely isolated, no draining during servicing
Flowmeter
Flowmeter with adjustable flow limiter and function control device, integrated in the (cold) return - resistant up to 120 °C - two measuring ranges: 0.5-5 l/min or 1-13 l/min
Integrated flush and fill unit
two fill and drain valves (on the flowmeter and on the safety group) permit flushing and filling the system
can be easily mounted to the wall with halting techniquecan be opened by turning the ball valve handle to a 45 °C position, 200 mm wc each circuit, especially for solar systems, prevents any gravity circulationeasy handling, visible closing position Airstop in the flow for permanent deaeration of the solar fluidmade of durable elastic EPP; 100 % insulated valves and fittings - excellent ventilation and cooling of the pumpsintegrated into the insulation, prewired and ready for quick installation, water protectedSolar pressure relief valve 6 bars, pressure gauge resistant to high temperature 0-6 bars with valve, ball valve for flushing and filling, flat sealing connection for an expansion tankcan be pulled off, with immersion sleeve integrated in the ball valvealready installed and prewired no draining during servicing Flowmeter with adjustable flow limiter and function control device, integrated in the (cold) return - resistant up to 120 °C - two measuring ranges: 0.5-5 l/min or 1-13 l/mintwo fill and drain valves (on the flowmeter and on the safety group) permit flushing and filling the system
Controller
The controller type 4 Plus is integrated into the insulation and designed for application with several basic systems. This controller contains 2 relay outputs for speed control and 4 sensor inputs for PT1000 temperature sensors. The illuminated display with system monitoring (blinking symbols for allocation of the indicated data) permits a simple and plain operation
and function control. The controller is equipped with a storage temperature limit, an hour meter, a heat quantity measurement as well as (selectable) tube collector functions.
Part of the scope of delivery are 4 PT1000 immersion sensors (diameter 6 mm, 2 x with silicone cable) as well as 4 immersion sleeves (1 x 60 mm, 2 x 100 mm and 1 x 150 mm long).
Application range / Collector surface
depending on the flowmeter and the operation mode
Flow types in the collector field: with flowmeter 1-13 l/min
Low-Flow = 0,2 litre/minute per m2 collector surface up to 65 m2 collector surface
High-Flow = 0,5 litre/minute per m2 collector surface up to 26 m2 collector surface
