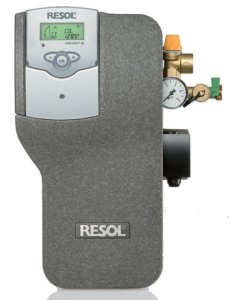

Solar station FlowSol S, controller and pump

Solar station FlowSol S, controller and pump

€823.00
operation pict.


pict.

Description

FlowSol S Single-line pump station,
  • incl. controller DeltaSol® BS/2 and 3 sensors Pt1000 (1 x FKP6, 2 x FRP6)
    Technical data
  • Circulation pump: Wilo St 15/6 Eco, 15/7 Eco or Wilo Stratos TEC ST 15/1-6 (FlowSol® S HE)
  • Pressure gauge: 0 ... 10 bar
  • Flowmeter: 1 ... 10 l/min
  • Non-return valves: 20 mbar, openable
  • Connection to diaphragm-type expansion vessel: 3/4'' IT, flat sealing
  • Outlet safety valve: 3/4" IT
  • Connections to the solar pipes: 3/4" IT
  • Maximum pressure: max. 6 bar
  • Medium: Water with max. 50 % propylene glycol
  • Dimensions: approx. 430 x 223 x 193 mm (with insulation) distance centres: 100 mm distance centre/wall: 67 mm
  • Material: fittings: brass sealings: EPDM/AFM 34 insulation: EPP foam
  • Maximum temperature: +120 °C
  • Non-return valve: 20 mbar, openable

    • Features

    • Model: 290 018 73
    • Shipping Weight: 15lbs
    • Manufactured by: Resol (DE)
