Description
Economizer SET 800
Heat exchanger 20 m2 AISI 321
All heaters are pressure tested to 5 bar. Max. operating pressure is 1 - 2 bar.
The exchangers can be clean by pressure washer
Smoke flue and condensate extraction are not included in the delivery order
The basic version is without insulation. It is available as an accessory.
Height 2000 mm (without flue connection and cone)
Dimensions 600 x 600 mm
Recommendation - flue diameter: max 600 mm
Max operating pressure: 5 bar
Working pressure: 1 - 2 bar
Heat output 40 - 120 kWh
Recommendation for boiler- 300 - 800 kW
Material: stainless steel AISI321
10 heat exchangers AISI321
Volume 25 l
Flow 50 l/min
The heat exchange area is 20 m2
Flue gas pressure loss 1 - 3 PA

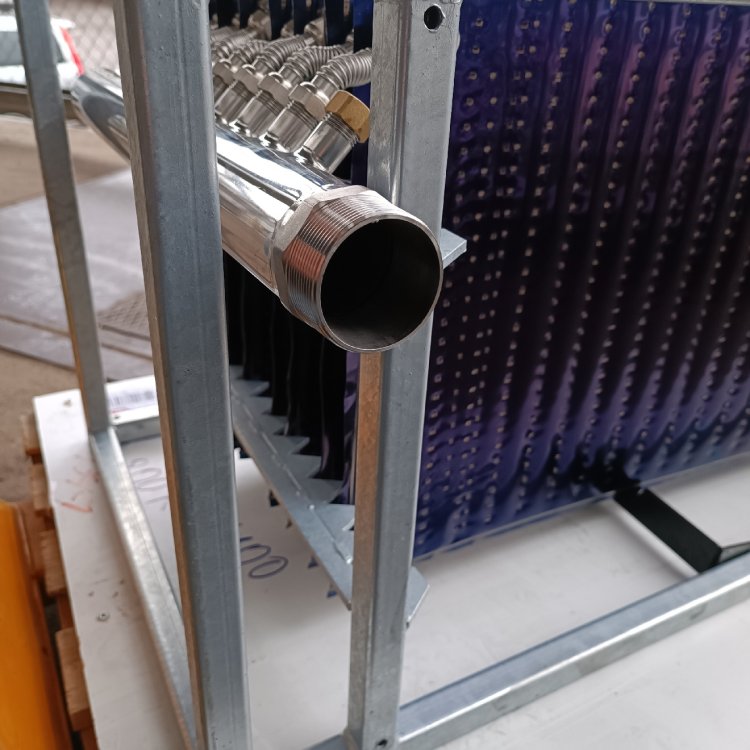

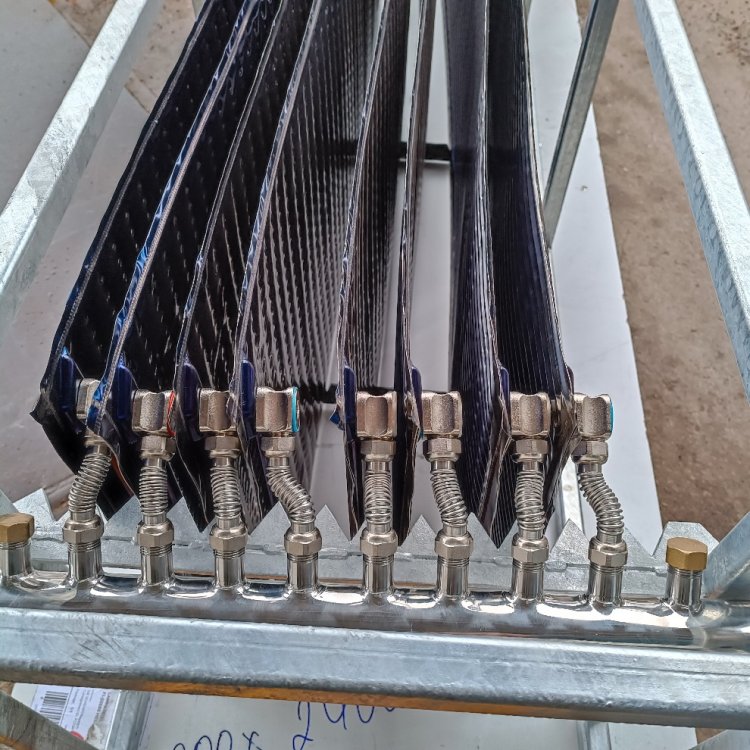

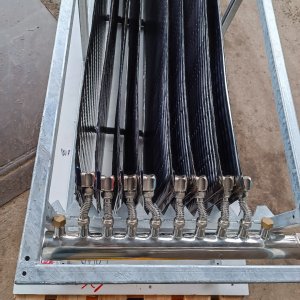

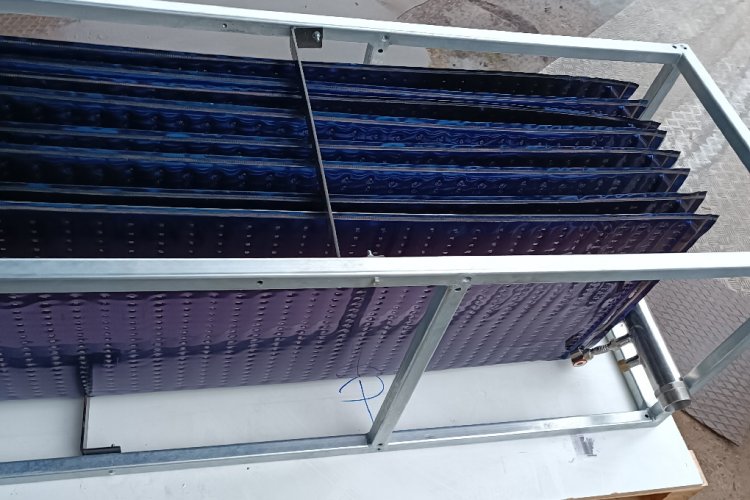

in Fig. 3 - Opened Demo, Fig. 4 - Heat Exchanger rst AISI321
Features
- Model: SET800
- Shipping Weight: 190lbs
- Manufactured by: Suomen EnergiaTehdas Oy
