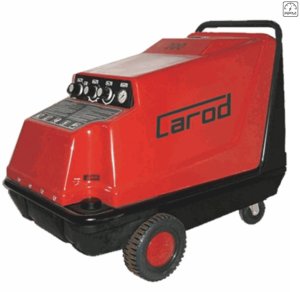

ACH-2021 hot water 140C high pressure cleaner 200BAR

model ACH-2021

• Voltage 400 V
• Absorted power 7,5 kW
• Dimension 71 X 51 X 88 cm
• Electric cable 5 m
• Warranty (y) 2
• Max. Pressure 210 Bar max
• Working Pressure 210 Bar max
• water max temperature 0 - 140 C
• Volume 1260 l/h
• Pressure hose 10 m
• PUMP C-GC-21/20
  Pump Code 819361
  Pump Brandt UDOR
  Pump Model CC-GC-21/20S
  Pressure BAR 200
  Flow Min/Hour L/Min-L/H 21 - 1260
  Piston Ceramic 3
  Absorbed power HP 10
  RPM 1450
  Body Pump Aluminum smelting
  Cranks Aluminum
  Cylinder head Brass
  LOGISTICAL DATA
  Lenght cm 110
  Height cm 94
  Width cm 66
  Weight kg 185
  DETAILS
  Metal chassis
  Boiler thermal power 55KW
  Diesel tank 30L
  Detergent tank 6L
  3-piston ceramic pump with rod/crank system and brass head
  24v low voltage electrical installation
  Self-extinguishing abs electrical panel with IP55 protection with hinge for easy access to internal components
  Timed total stop 20”
  Boiler control
  Vertical high-performance stainless steel boiler with separate motor
  Water shortage control
  Micro-leakage control
  Reinforced polyethylene load frame, sound-absorbing, self-extinguishing, with diesel and detergent tank function
  2 Large-diameter fixed wheels (260mm)
  2 swivel wheels diameter 100mm with built-in brake
  Separate regulation valve with reset of the pump when the lance closes
  Safety valve Regulation thermostat and high sensitivity
  Accessories
  Pressure regulating valve with return l
  Security valve l
  Manometer l
  High pressure valve l
  10 meter high high pressure hose l
  Lance for cleaning l
  Oil tank with mechanical flume l
