Description

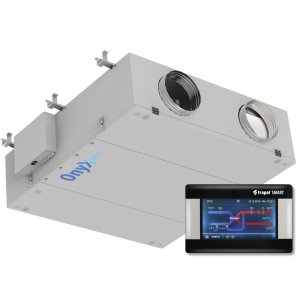

These are suspended units of height below 320 mm. In these units, casing was made of powder-painted metal plate connected with high quality plastics. Apart from aesthetic looks, this also ensures durability and rigidness of the structure with significant reduction in unit weight. Holders for installing OS units are furnished with vibration attenuators, which provides isolation of the unit from structural elements of the building.
Owing to the innovative structure, on user’s request, OS units can operate in partial recirculation mode, using just the air supply fan. OS units can be furnished with air supply module allowing for air distribution within one room directly, without the need for building a ventilation installation. This property is perfect for facilities such as schools and nurseries.
Maximum air flow [m3/h] 3200
Wall thickness [mm] 30
Weight [kg] 225
Rated voltage [V] 230V AC/50 Hz

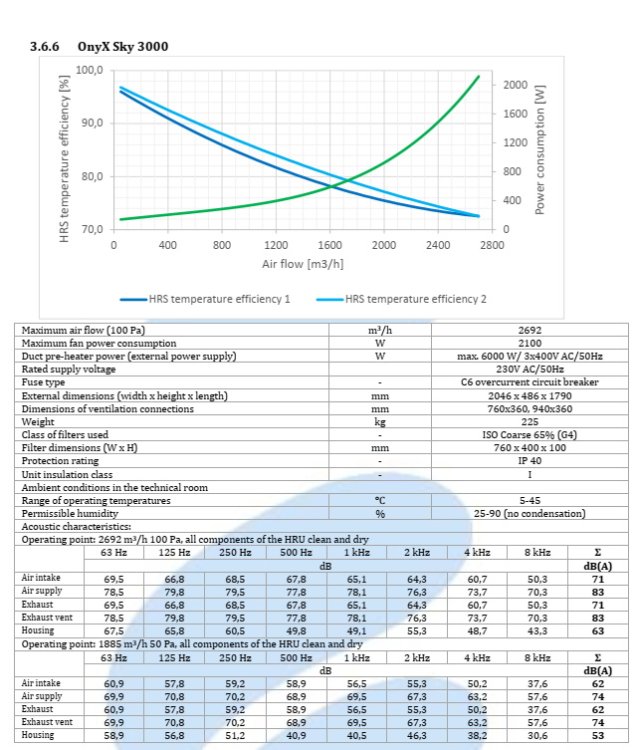

Temperature effciency of heat recovery [%] to 95
Rated air flow [m3/h] 3000
Rated pressure difference [Pa] 100
Specific power input [W/(m3/h)] 0,35
Filter class - G4
Filter size [mm]
760x400x100
Power consumption by fan drive (rated) [W] 1200
Power consumption by fan drive (maximum) [W] 2000
Electric heating coil capacity [W] 7200

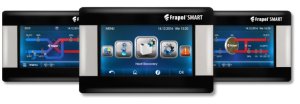

Automation - SMART
Bypass Standard
Preliminary heating coil, type, capacity Channel, 800x400, 7200 W
Rated voltage 4x400V AC/50Hz

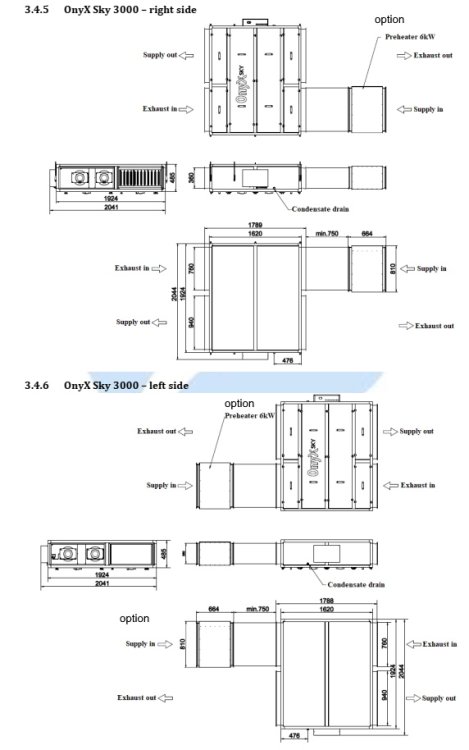

Dimension 463x1792x2028
Connection diameter 800x400-(intake, exhaust)
965x400-(ejector, supply)
