PolarSol Sirius solar collector 1 m2 -20 m2

PolarSol Sirius solar collector 1 m2 -20 m2


Call for price
u pict. 01
03


01


03

Description

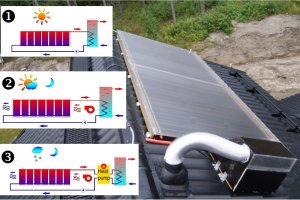

The unique solar collector who also work as a heat pump heat collecting circuit.
  • work as a solar collector
  • if sun is out - work as heat pump heating collector, working temp. for heat collection of circuit -25C degree, thanks to special construction with 4 blowers on sides (4 x 5 W)
  • 3-way valve with controller change directions of flow to heat pump or accumulation tank.
  • surface area of 1 m2 - 20m2
  • Material Stainless Steel (AISI321/DIN 1.4541)
  • operating pressure of 2 bar (tested at a pressure of 5 bar)
  • Temperature resistance up to 600 ° C
  • channel length 58 m / 1 m ²
  • internal volume of 3 liters
  • Throat 1360 mm ²
  • Connection ½ "90 ° fittings (2 pcs.)
  • blower
  • cover 6 mm polycarbonat
  • down cover 4 mm polycarbonat
  • 5 years warranty
  • period of 25 years

    Features:
  • wake-up time (heating duration of start-up) - 3 min Partly this is possible because Stainless steel is only 0.3 mm, it warms up instantly and transfers the heat to the water immediately. Sky at - 20C in sun the water can be + 15 C.
  • 218 linear meters of water channels at the same time warming up.

    • Features

    • Model: Sirius
    • Shipping Weight: 60lbs
    • Manufactured by: PolarSol (FI)
