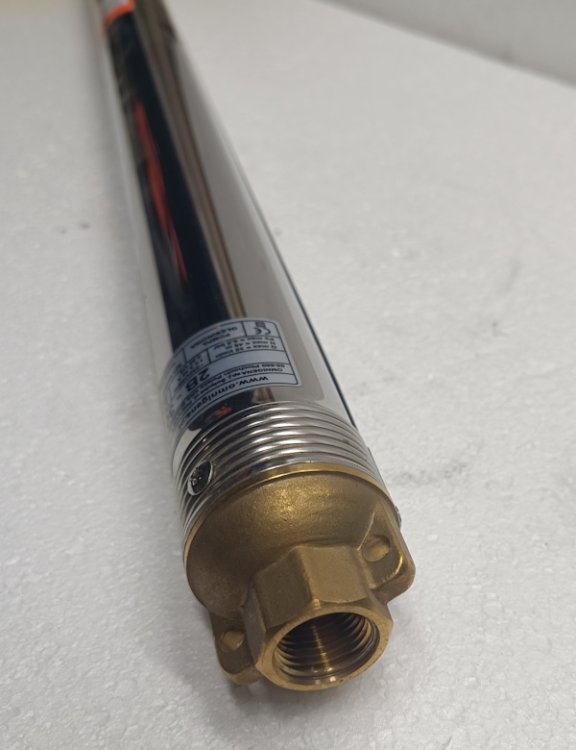

Well pump 2" 230V + cable 20m

SUBSEQUENT PUMP 230V BUILT-IN CAPACITOR + 20m cable 2" submersible pumps are devices designed to be installed in wells with a minimum diameter of 75 mm. They are designed for pumping clean, cold water that does not contain solid grinding or long-fiber elements.

20m cable
Technical data:

Maximum capacity: 35 l / min

Maximum lifting height: 45 m

Engine power: 0.25 kW

Voltage: 230V

Discharge port: 1 "

Length of the power cord: 20 m

Maximum water temperature 35 ° C

Protection degree IP 68

Winding insulation class B

Number of starts up to [x / hour] 20

Minimum cooling flow of the engine [m / s] 0.08

Maximum immersion depth [meters] 50

Working position vertical

Built-in engine starting method

capacitor
Material execution:

Stainless steel pump housing

Stainless steel cable sheath

Stainless steel pump shaft

Noryl impellers and diffusers

Stainless steel inlet strainer

Brass discharge body

Brass suction body
