Ideal for booster sets or for drainage pumps on sewage water lifting stations.

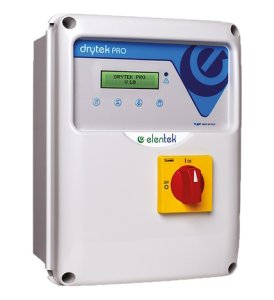

Control panel specific for drainage systems. DRYTEK PRO protects the electric pump against dry running by the power factor control integrated in the microprocessor. Thanks to the display and the available expansions it helps saving installation time and reducing service costs.The innovative switching power supply guarantees a working range with wide voltage variation supply to the electronic board making of Drain a reliable control panel in any situation.
• Complete range of control panels from 1 to 2 motors DOL start single-phase and three-phase
• Integrated and programmable dry running protection (by power factor or float switch)
• Control unit with phase sequence/failure and min-max voltage control
• Control unit with digital inputs (float switch)
• Integrated and programmable pumps rotation
• Multifunction LCD with multi-meter integrated and view of the status of the system
Technical features
- Voltage 400 V 3∼
- Power per pump 0.55-7.5 kW
- Max current 16A
FUNCTIONS
- LCD display showing: voltage, current, power factor, hours of operation, number of starts, motor status and alarms
- AUTOMATIC - 0 (standby) – MANUAL selector (fixed or pulse)
- Language settings (Italian, English, French, Spanish, German)
- Anti-seize autotest (programmable)
- Dry running protection by power factor control
- Up to 4 control inputs: level probes/floats/pressure switches
- Clicson inputs with automatic reset (can be disabled)
- Inputs inversion (from normally open to normally closed)
- Automatic reset for minimum power factor alarm settable with 4 times
- Manual button operation (fixed or pulse)
- Provision for run capacitors on single-phase model (not included)
ADDITIONAL FUNCTIONS SMART PRO 2
- 2 pumps control
- Duty/standby (can be disabled)
- Immediate motor changeover in case of a fault
ALARMS
- Alarms reported: voltage status, levels, motor overload, minimum motor current, clicson motor
- General alarm output contacts
PROTECTION
- Auxiliary and motor protection fuses
- Isolator (except for NB code)
- Box in ABS, IP55
