A-class Pump station for under floor and radiators heating
  • Model: GM2F
  • Shipping Weight: 16 lbs

€412.00

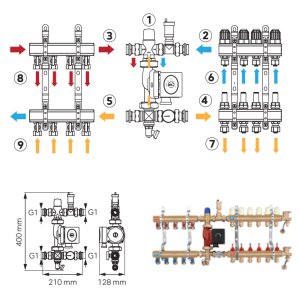

Pump station Mixing group GM2F
• The dual-function mixing group serves to lower and
maintain the desired temperature of the heating agent
of the surface heating system and to connects it with
the high-parameter radiator system.
Parameters:
• static pressure (PN): max. 0.4 MPa (4 bar)
• dynamic working pressure: max. 0.3 MPa (3 bar)
• Kv: 1.9 m3/h
• temperature regulation range: 20 - 40°C
• accuracy of regulation: +/- 3°C
The group includes:

• automatic pump
• 3-way thermostatic mixing valve
• automatic air vent with foot valve
• thermometer
• swivel drain valve
• set of unions
Advantages:
• double-function - allows to connect radiator and floor
manifolds into a single system
• universal group for all manifolds with 210 mm bar spacing
• accurate and easy to control
• reversible

Options:

  • wireless adjustment of floor circuits

  • wireless regulation of battery circuits

  • hot domestic water solution
