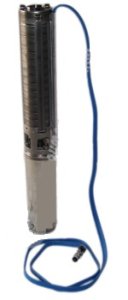

Grundfos SP 2A-23 Deep well pump

Grundfos Deep well pump submersible pump SP 2A-23 4" 2-115 engine with 50cm cable and free cable end

Flow rate: 2 m³ / h

Rated head: 92 m

Rated current: 3.4 A

Power 1.1 kW

The pump has:

Soft start function

Dry run protection

Protection against Axialschubumkehr

Over-voltage (315 V) and undervoltage protection (150V)

Overload protection

Protection against overheating

The pump is driven by a 1-phase permanent magnet motor.

The engine is characterized by a high efficiency over a wide power range. With soft start (max. 2 sec) to avoid pressure shock and high inrush current.

The pump has two eyelets for attaching the steel (SS) lifeline and non-return valve.
