Product 1/7
Internet Room regulator for controlling electric actuators.

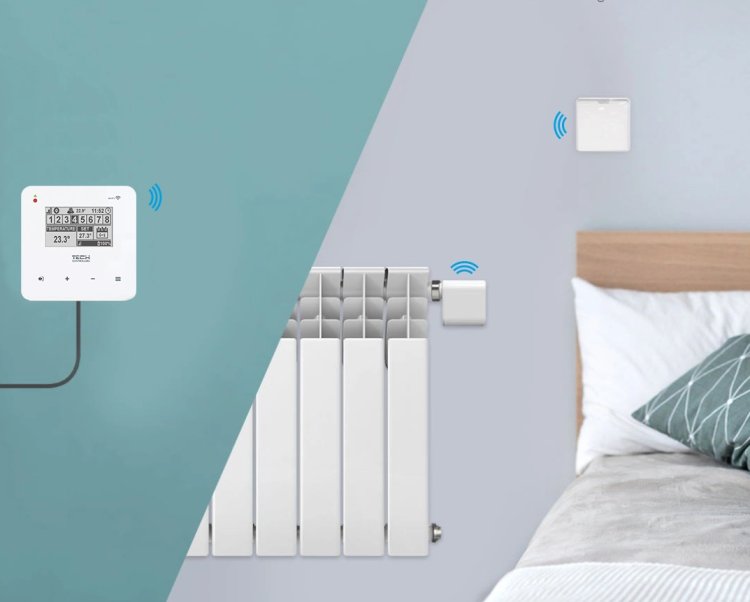

The EU-WiFi 8s controller decides if a given zone needs to be heated on the basis of current temperature value sent by the room sensor (C-8r, C-mini or C-7p) or the room regulator (R-8b, R-8z, R-8bw (software version 2. 1. 19 and later)), as well as the individual operation algorithm of the zone. If heating is necessary, the EU-WiFi 8s controller activates the voltage-free contact, which may be used e.g. for controlling the heating device, and opens the actuators registered in a given zone. The signal from each zone is transmitted to the EU-WiFi 8s controller via room regulators or room sensors. They communicate with the controller via radio signal. Each zone may be assigned wireless valve actuators STT-868/STT- 869 (version 2.1.8 and later), which require registration.

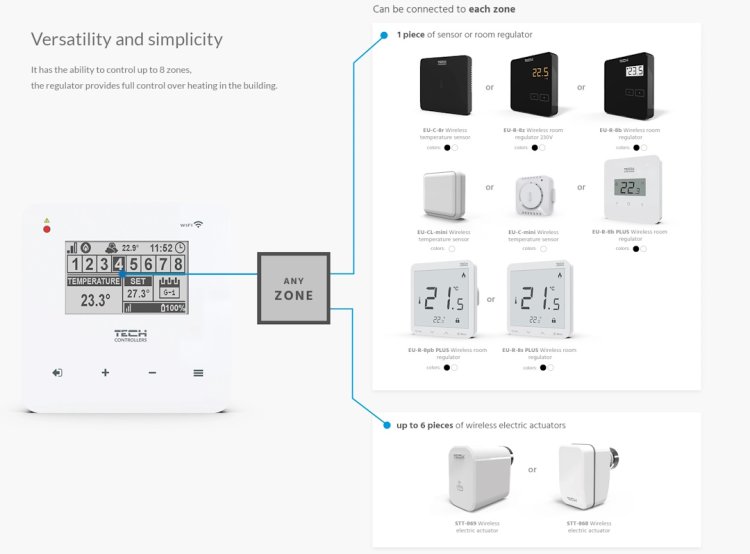

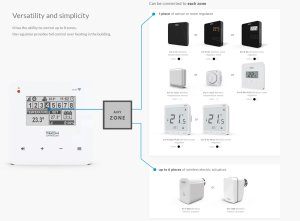

Functions: • controlling up to 8 different zones with the use of: - built-in temperature sensor or one wired sensor included in set EU-C-7 p (EU-WiFi 8S) - wireless sensor EU-C-mini (included with WiFi 8S mini) - possibility of connecting up to 8 wireless sensors EU-C-mini, EU-C-8r or room regulators EU-R-8b, EU-R-8z, EU-R-8b Plus • NO/NC relay output (e.g. for controlling the heating device which is activated when the room temperature is too low) • possibility of connecting up to 6 wireless electric actuators STT-868/STT-869 in each zone • possibility of connecting up to 6 modules EU-MW-1 / EU-MW-1 230 • possibility of installing up to 6 wireless window opening sensors EU-C-2n • possibility of updating the software via USB port • each zone can be assigned an individual operating mode (constant temperature, time limit or 6 schedules) • compatible with wireless external sensor EU-C-8 zr

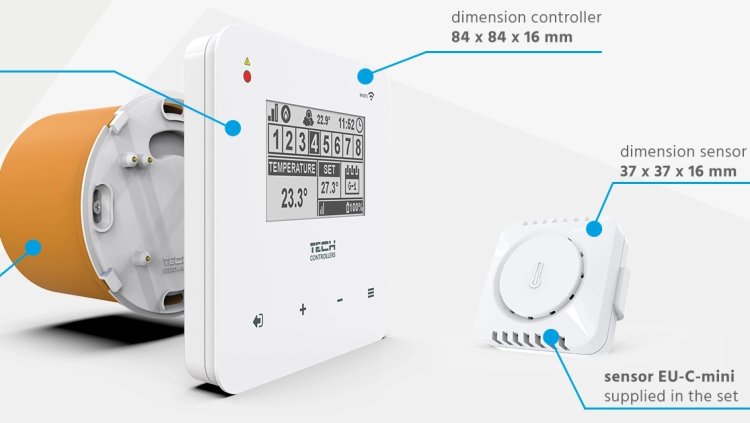

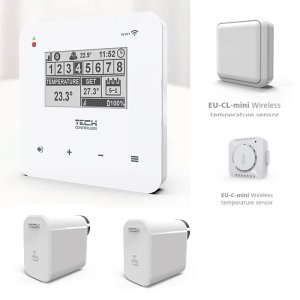

Equippment: • EU-WiFi 8 controller and power supply 5V • 2 pcs actuators STT869 • additional wired temperature sensor EU-C-7 p (WiFi 8S) • additional wireless temperature sensor EU-C-mini (WiFi 8S mini)
