PG 500 Compact Backup

(image for) PG 500 Compact Backup
PG 500 Compact Backup
  • Model: 16214

€403.83

Add to Cart:

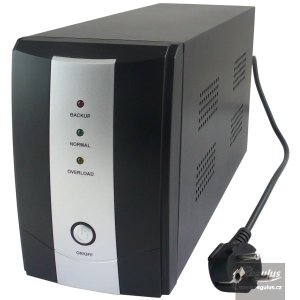

PG 500 Compact Backup
  • power supply for circulation pumps or other electric equipment during power cuts
  • solid-fuel boilers can be safely cooled down after a power cut occurs consists of two integrated AGM batteries, electronic circuits ensuring battery charging and protection, inverter, power outlets for the equipment to be power supplied and cable to connect to grid
  • Properties
  • the output waveform is a sine wave offering trouble-free operation of high-efficiency circulation pumps –
  • tested on Wilo and Grundfos pumps
  • automatic switching from grid to battery and vice versa
  • smart two-step battery charging with overcharge protection
  • battery protection from overcharge and deep discharge
  • multi-function LED and sound signals
  • output load power consump (230 V)
  • nominal voltage 230 V 50 Hz
  • voltage range 170 - 260 V 50 Hz
  • max. inverter output 600 W
  • nominal voltage 230 V
  • voltage range (backup mode) 195 - 255 V
  • frequency 50 Hz
  • frequency tolerance (backup mode) ± 1 Hz
  • output waveform (backup mode) modified sine wave
  • size (d x ¨ x v) 335 x 125 x 195 mm
  • weight 11 kg
  • using at 0 - 40 °C
  • using at 0 - 90 % non-condensing
  • silent run (no fan)
  • output load power consump (230 V) 20W backup period 5h
  • output load power consump (230 V) 45W backup period 3h 30 min

    • Languages
