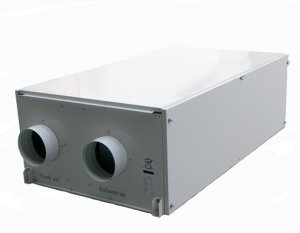

Heat recovery ventilation with heat pump air to air HPERV500

Heat recovery ventilation with heat pump air to air HPERV500

€6,694.00
u pict. 01
02
03


01


02


03

Description

Heat recovery ventilation with heat pump HPERV500

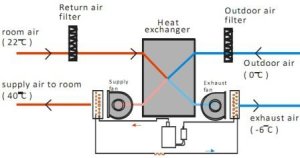

Is a ventilation unit consisting of a counter flow heat exchanger, a heat pump, supply and exhaust air fans, supply air filter, exhaust air filter and controller.
This unit can offer air heating combine with the ventilation system in the house. Fresh air coming from outside can be directly treated by the unit, and polluted indoor air can be exhausted. The heating in polluted indoor air will be recovered by this unit, and return back indoor.

range of outdoor temperature ºC -15 ~ 42
cabinet insulation Polyurethane
insulation thickness 25mm
power supply 230V/ 50Hz / 1 phase
noise *1) 32 dB(A)
Performance:
  • Heating capacity 3800 W
  • Cooling 3200 W
  • COP: 7,55 at ambient -15'C
  • compressor & refrigeran system
    rotary, thermal protection, refrigerant R410a
  • Ventilation
    max air volume 480 m³/h
    min air volume 160 m³/h
    240V 1-phase 50Hz
    Duct dimension D200
    heat recovery for heat recovery aluminum plate type
    air filter for indoor air G4
    air filter for outdoor air EU 5-7
    Dimensions (LxWxH) mm 1800/930/515
  • compact design
  • reduces heating & cooling loads
  • ventilation, new fresh air, heat recovery design
  • electronic timer – variable settings
  • supply and exhaust duct connection: 200mm diame
  • high static-pressure centrifugal fan, low noise and high reliability
  • (optional) fresh air and exhaust air damper with motor for 200mm duct

    • Features

    • Model: HPERV500
    • Shipping Weight: 250lbs
