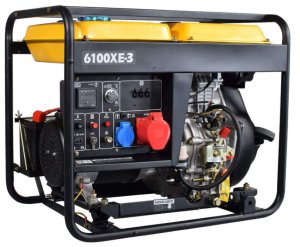

Diesel generator DG6100XE-3 AVR

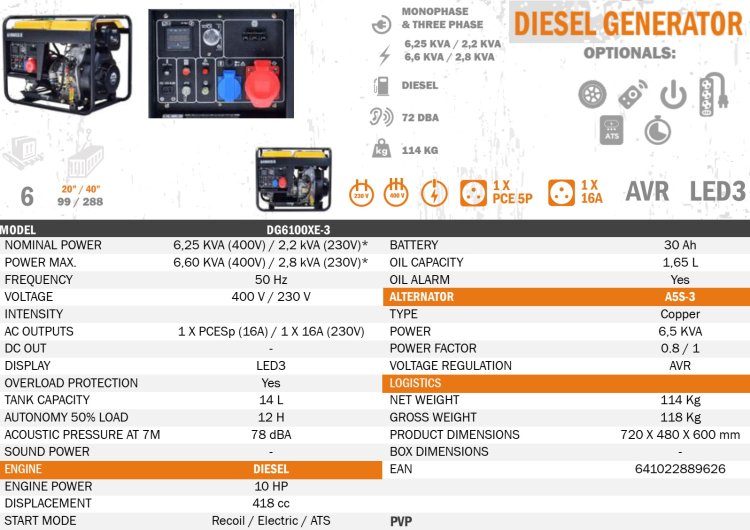

Diesel generator MODEL DG6100XE-3

• Voltage Regulation AVR
• Frecuency 50 Hz
• Nominal Power 6,25 Kva
• Maximum Power 6,60 Kva
• Voltage (v) 400 v.
• Intensity (A) 14 A
• Sockets 1 x PCE 5p + 1x16A
• 1 Schulo socket is 230v and 16A , Single phase socket is Auxiliar one as in Single phase power is only 1/3 of Total 3-phase power (2 Kw). If use too much Single phase power can finally damage Alternator.
• Display
• Fuel Capacity (L) 14 L
• Autonomy at 50% Load 12 h
• Sound Level at 7 m. 78 dB
• Battery (Ah) 30 Ah
• Engine Type Diesel Monocilíndrico
• Engine Model D400E
• Power (hp) 10
• Starting System Eléctrico / Manual
• Displacement 418 cc.
• Oil Capacity (L) 1,65 L
• Alternator A5L3
• Nominal Power (Kva) 5
• Power Factor 0,80
• Voltage Regulation AVR
• Dimmentions mm. 720x480x500

  Option

• Equipments for heat recovery system and joint into the heating system - possible to get 6 - 9 kW heat power.
