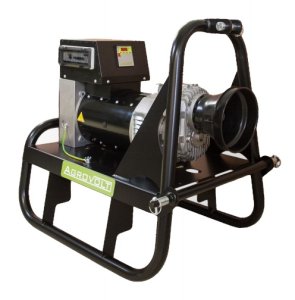

Tractor generator AV27 27,0 kVA / 21,6 kW
- Specifications:
Three-phase Power Rating 27,0 kVA / 21,6 kW 400 V 50 Hz
- Max power 29,7 kVA
Dimensions L x W x H 930 x 800 x 932 mm
- Generator:
Synchronous type
Protection IP 23
Turnover 3000 r / min.
Voltage 39 A 3, 46,9 A1
- Transmission:
Type of gear, single stage
Oil type SAE 80W-90
Oil capacity 0.7 l
- Tractor:
Rotation PTO (W.O.M.) 370 rev / min.
Suggested power of the tractor 70 hp (52 kW)
Motor shaft power takeoff (W.O.M.) 40 hp (30 kW)
Minimum strength of the cardan shaft 90 hp (67 kW)
- Standard equipment:
- Standard Voltage Regulation - (+5% -10%)
4 pole automatic breaker
2-pole automatic breaker
Security. Residual current
Socket 3-phase 63 A + Pilot
2 x 1-phase 16 A
Undervoltage release
Voltage measurement
Frequency
Current measurement
Hour meter
Optio: AVR Digital Voltage Regulation - (+/- 1%)
