Temperature controller A25RTH Wireless

Temperature controller A25RTH Wireless

€109.00
z pict. 1


1
Item is in stock

Description

Temperature controller A25RTH

Wireless


Easy programming, the ability to change the hysteresis (± 0.2 ° C / ± 0.4 ° C). It has 4 independent, adjustable temperatures - day, night, holiday and antifreeze. 3 preset programs, and 7 programs modifiable by the user. Easy to read 3 colour backlit LCD display. Work Time counter of heating device
Advantages :
  • Energy savings
  • Backlit screen
  • Simplified programming
  • 16A
  • Enhanced vacation mode Technical specification
  • Working temperaure range: 0 – 45°C
  • Temperature adjustment range: 4 – 30°C
  • Hysteresis: ±0,2°C / ±0,4°C
  • Temperature levels: 2 + vacation
  • Antifrezze temperature: Yes (modifiable: 4 – 10°C)
  • Working cycles: weekly, programmable
  • Working mode control: LED (the RTH receiver) / LCD (the regulator)
  • Maximum amperage: ~16A
  • Power supply:2x AA 1,5V battery
    Working under load up to 16A AURATON RTH receiver is equipped with a relay that can operate under load up to 16A and the technology of low-spark switch (negligible wear of relay contacts).
    Interference free communication between devices AURATON 2025 RTH operates at a frequency of 868 MHz with extremely short (4 ms) encrypted transmissions , which ensure smooth and interference free operation (4 billion codes).
    Memory algorithm cycles on / off AURATON RTH receiver is equipped with a unique algorithm which analyzes on-off cycles. The entire heating cycle of the last 24 hours is stored in the receivers memory. In case of loss of communication with the transmitter, the receiver will automatically start remembered program of the last 24 hours on/off cycle. This gives time for the restore transmission (removing interference) or repair the regulator without significant deterioration of thermal comfort in controlled room.

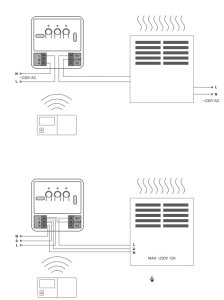

    AURATON RTH - Receiver. The receiver – AURATON RTH – mounted by the heating or air conditioning unit, is equipped with a relay that can operate under load to 16 amps. Because wireless cooperation with temperature controller it does not require additional installation work associated with bringing the wires from the controller to the receiver. Synchronization of AURATON 2025 temperature controller and a receiver AURATON RTH RTH is extremely simple and is limited to pressing a button on each of the elements of the system. With LED indicators you can easily monitor the status of operation.

    • Features

    • Model: A25RTH
    • Shipping Weight: 2lbs
    • Manufactured by: Auraton
