A 8Dpro Under floor heating controlling system

A 8Dpro Under floor heating controlling system

€99.00
u pict. 01


01
Item is in stock

Description

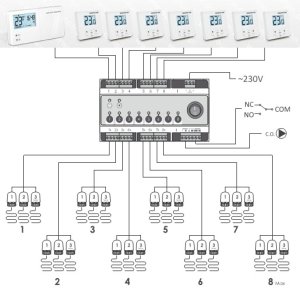

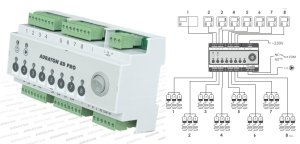

Under floor heating controlling system 8 zones.
For each zone can connect up to 3 actuators AURATON AURATON TE 230 or TE 230PRO.
Easy to use and to mount on a DIN rail.
Controlling the circulation pump C.O.
Boiler control C.O. via a relay with floating contacts.
Designed for use with wired temperature controllers.
To facilitate assembly of the terminals are provided with a pull-out terminals. Before connecting cable can be removed from the controller.
Power 230VAC 50Hz
Number of independently controlled heating zones 8
The ability to assign up to 8 thermostats
Pump output capacity 230 200
Load relay: 230 VAC, 2 A (dry contacts COM, NO, NC)
Optical signaling of operation - LED
The degree of protection IP 20

Features

  • Model: 8Dpro
  • Shipping Weight: 2lbs
  • Manufactured by: Auraton
