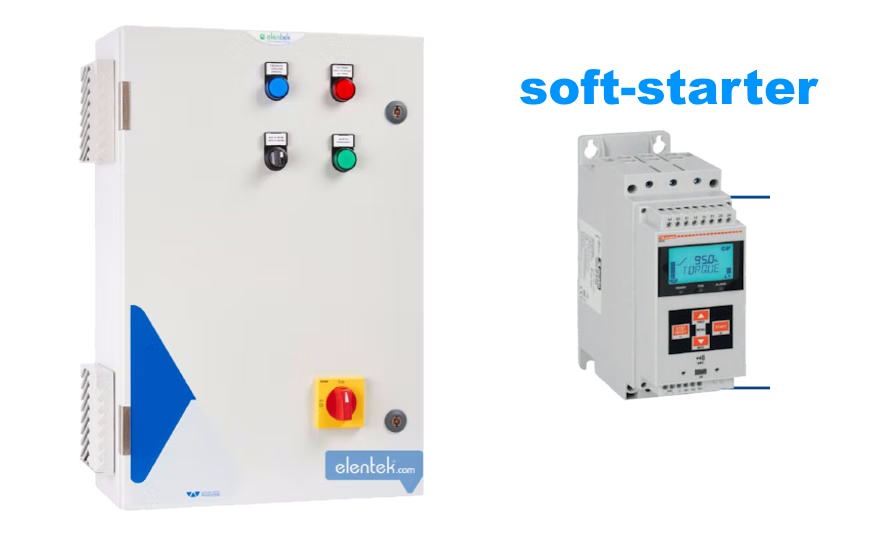

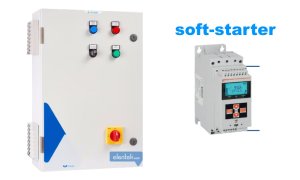

Static1 Soft Start control panel with Soft Start

Static1 Soft Start control panel with Soft Start

• ON/OFF control panel
• Voltage 400 V 3∼vaihe
• Power per motor -22 kW
• Max current 45A
  • Multifunction LCD with multi-meter integrated and view of the status of the system
  Technical features
• Voltage 400 V 3∼
• Power per pump 22 kW
• Max current 45A
• MAIN FEATURES
  Auxiliaries contacts and circuits in low voltage;
  Normally open contact for start;
  Normally open contact for minimum level/pressure contact;
  Selector for Auto-Off-Manual (stable) operation; - Manual: direct operation without controls; - Automatic: operation with control by minimum level/pressure and start;
  Blue led indicating mains supply;
  Green led indicating motor running;
  Red led indicating motor overload;
  Soft starter with the following main controls: - Integrated By-Pass; - Phase control (R-S); - Trimmer for starting ramp (0…20 s); - Trimmer for stopping ramp (0…20 s); - Trimmer for starting voltage (40…70 %); - Fieldbus communication;
  Overload thermal relay internally restorable.
  Auxiliaries and motor protection fuses;
  Isolator;
  Metallic box, IP54;
  Ambient temperature: -5/+40 °C;
  Relative humidity 50% at 40 °C (not condensed).
